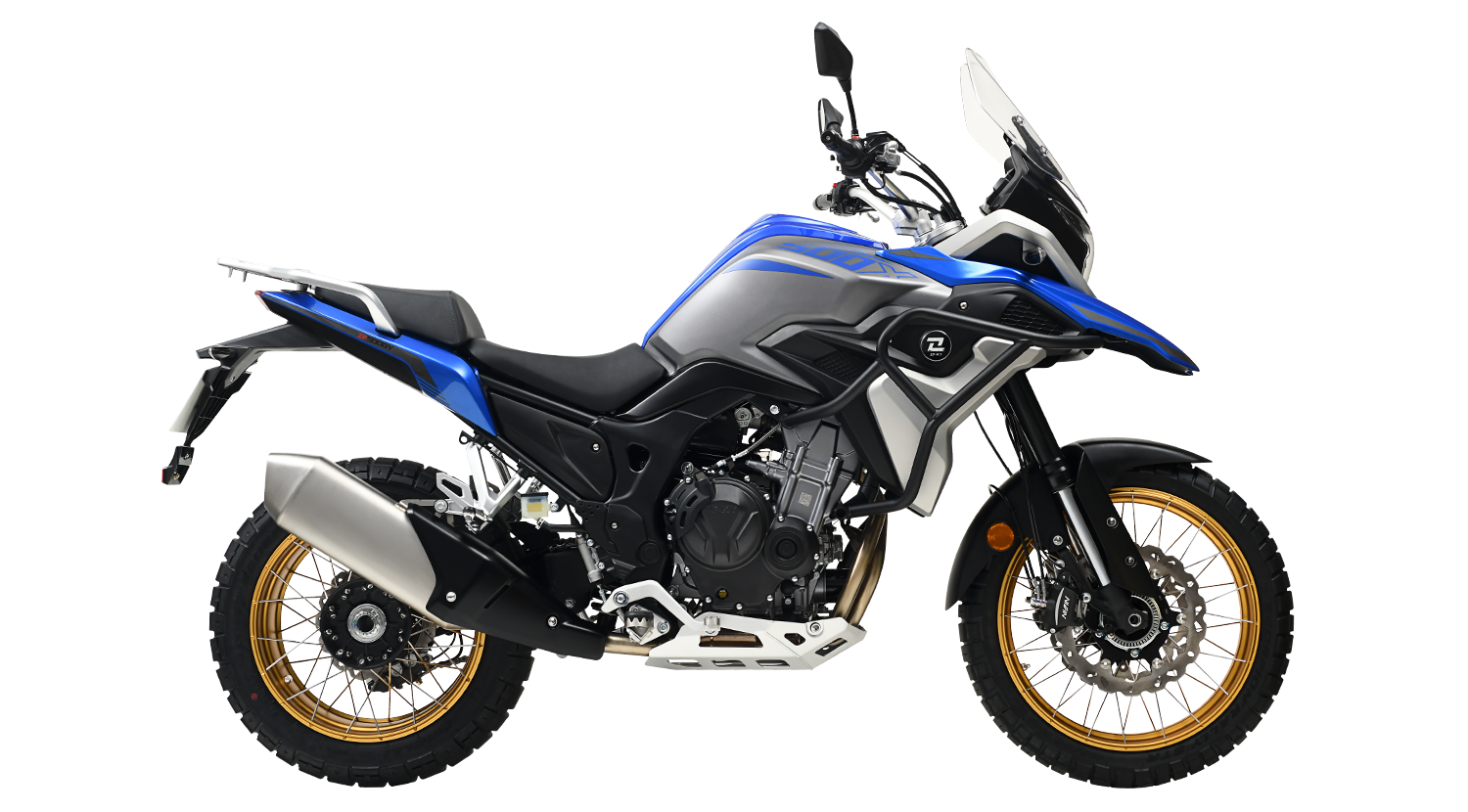

500X SINGLE SWING ARM

Color

Technical specs
  • Lux
  • Dimension
  • Engine
  • Chassis
  • Length X Width X Height2197 ×930 ×1370mm
  • Wheelbase1465mm
  • Seat height820mm
  • Tank capacity20L
  • Curb weight186kg
  • Ground clearance210mm
  • Trail105mm
  • Engine typeTwin cylinders, DOHC, liquid-cooled, 4 valves per cylinder
  • Displacement471cc
  • Bore x stroke67×66.8mm
  • Compression ratio10.7:1
  • Max. power35KW/8500rpm
  • Max. torque43N·m/7500rpm
  • Fuel supplyEFI
  • Max. speed170km/h
  • 0-100 km/h start acceleration6s
  • Fuel consumption4.2L/100km
  • Frame typeDiamond shape, dual-wing beam
  • Front suspensionKYB fully adjustable upside down fork
  • Rear suspensionAluminium swingarm with multi-adjustable KYB monoshock
  • Front brakeNISSIN, dual discs, 2-piston calliper/ABS
  • Rear brakeNISSIN, single disc, single piston calliper/ABS
  • Front tire 110/80-19
  • Rear tire150/70-17R
  • Rake25.5°
  • InstrumentionLCD
Performance characteristics

Best model for adventurers!

KYB shock absorber: it also help this model to maintain the stability. Powerful engine: the dual cylinder, vertical, DOHC water-cooled engine brings a maximum power of 35KW/8500rpm, a maximum torque of 43N·m/7500rpm, and a maximum speed of 170km/h.

Best model for adventurers!

It seems like the model 500X Euro 5. It can give you comfortable and safe riding and it’s the best choice for the adventurer! TFT instrument: it has improved the visibility of the interface and easy to use and look at. Self-made frame: that’s the reason why you can drive this model steadily. And this frame can overcome different road conditions because of the powerful toughness. Lightweight concept: the lightweight is always the concept of our brand. A lot of lightweight materials used on this model can give you a sporty and exhilarating ride on the turns.
