Technical specs
  • Lux
  • Dimension
  • Engine
  • Chassis
  • Length X Width X Height2156 × 850 ×1177mm
  • Wheelbase1460mm
  • Seat height820mm
  • Tank capacity18L
  • Curb weight188kg
  • Ground clearance210mm
  • Trail106mm

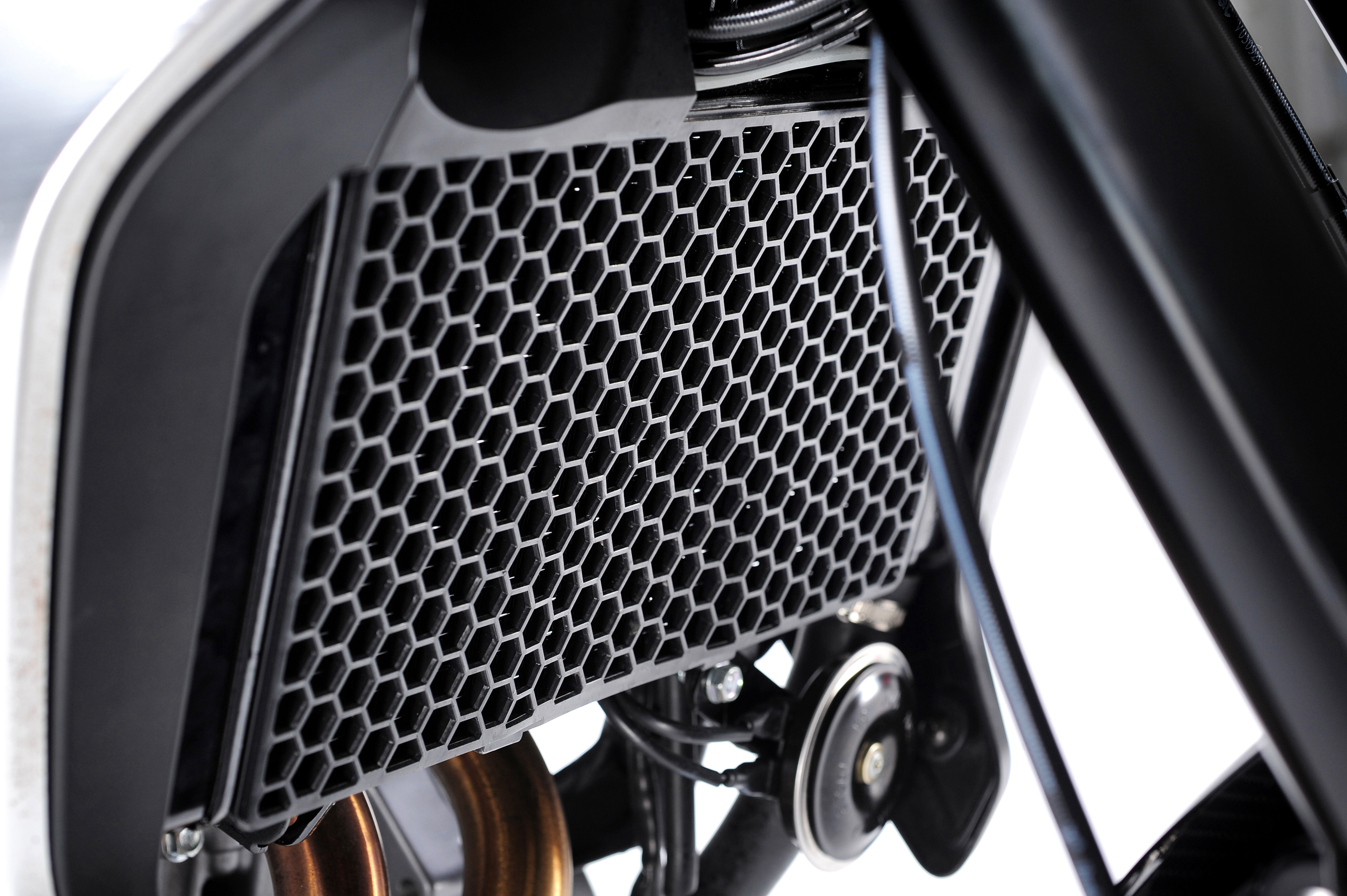

  • Engine typeDual cylinders, DOHC, liquid-cooled, 4 valves per cylinder
  • Displacement471cc
  • Bore x stroke67×66.8mm
  • Compression ratio10.7:1
  • Max. power35KW/8500rpm
  • Max. torque43N·m/7500rpm
  • Fuel supplyEFI
  • Max. speed170km/h
  • 0-100 km/h start acceleration6s
  • Fuel consumption4.2L/100km
  • Frame typeDiamond shape, dual-wing beam
  • Front suspensionKYB fully adjustable upside down fork

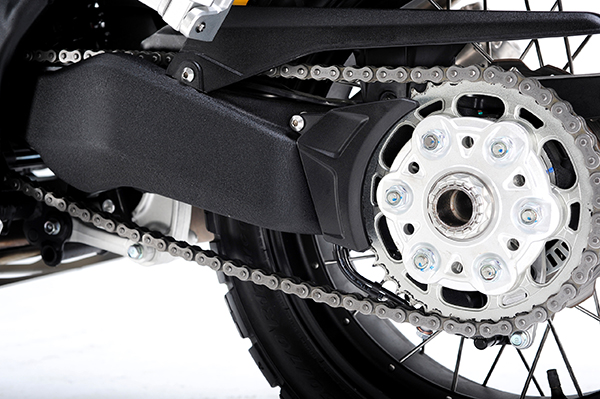

  • Rear suspensionAluminium swingarm with multi-adjustable KYB monoshock
  • Front brakeNISSIN, 298mm dual discs, 2-piston callipers/ABS
  • Rear brakeNISSIN, 240mm single disc, single piston calliper/ABS

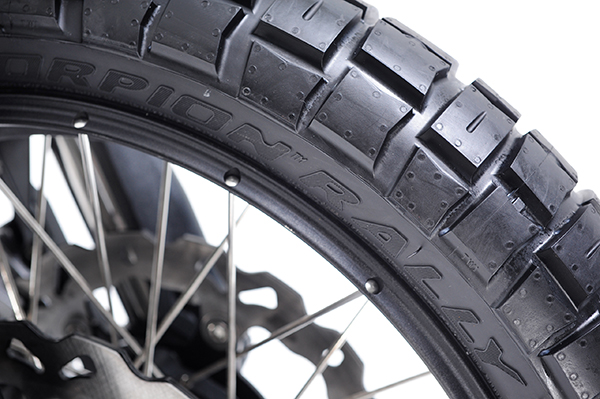

  • Front tire Pirelli, 110/80 R19
  • Rear tirePirelli, 150/70 R17
  • Rake angle25.5°

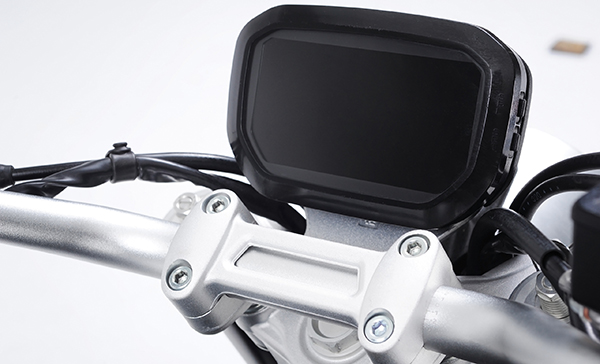

  • InstrumentionLCD
Performance characteristics

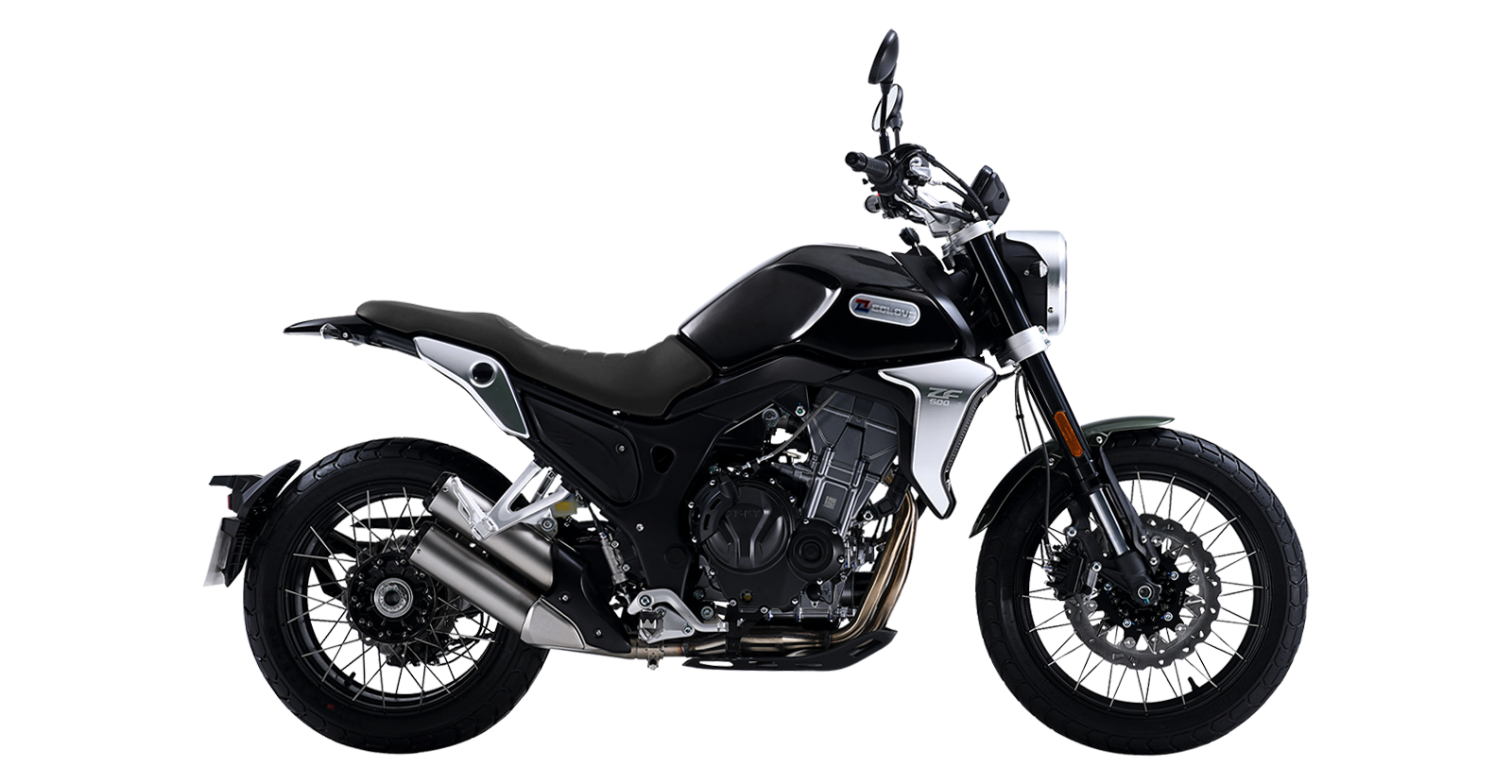

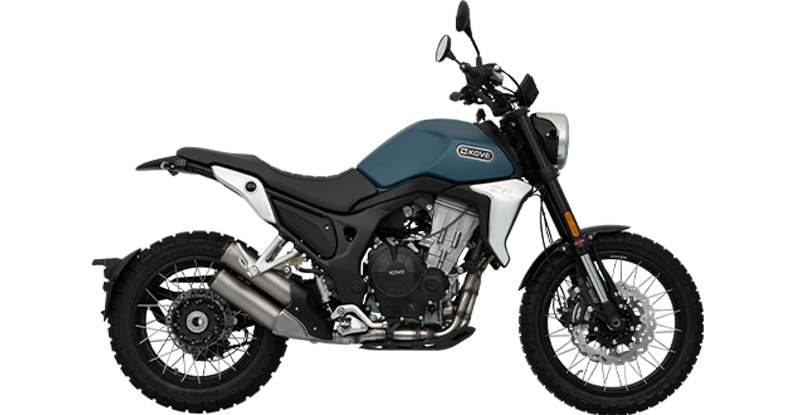

Traveling through the city and jungle with 500F Scrambler

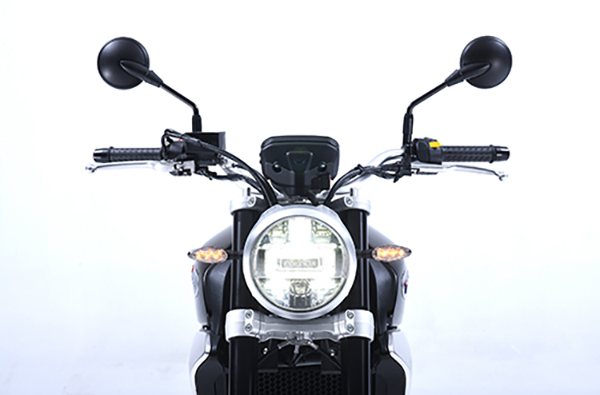

This model is a vintage model of 500 displacement series, it has all vintage features: round headlight, leather saddle, fuel tank of aluminium, etc. This model is also equipped with high quality components: NISSIN brake and ABS system are the guarantees of safe riding. KYB shock absorber is reason why you can ride steadily. BOSCH EFI system can optimize fuel consumption and reduce the emission.
