510X

Color

Technical specs
  • Premium
  • Dimension
  • Engine
  • Chassis
  • Length X Width X Height2200×935×1400mm
  • Wheelbase1479mm
  • Seat height830mm
  • Tank capacity20L
  • Curb weight205 kg
  • Ground clearance210mm
  • Trail105 mm
  • Engine typeDual cylinders, vertical, DOHC, liquid-cooled
  • Displacement498cc
  • Bore x stroke72×61.2mm
  • Compression ratio10.6:1
  • Max. power35KW/8500rpm
  • Max. torque45N·m/7000rpm
  • Fuel supplyBOSCH EFI
  • Max. speed170km/h
  • Frame typeDiamond shape, dual-wing beam
  • Front suspensionKYB preload/damping adjustable
  • Rear suspensionKYB preload/damping adjustable
  • Front brakeDual discs , 2-piston calliper/ABS
  • Rear brakesingle disc, single piston calliper/ABS
  • Front tire 110/80R19
  • Rear tire150/70R17
  • Steering angle35°
  • Rake25.5°
  • InstrumentionTFT
Performance characteristics

It makes you have no fear of the extreme adventure

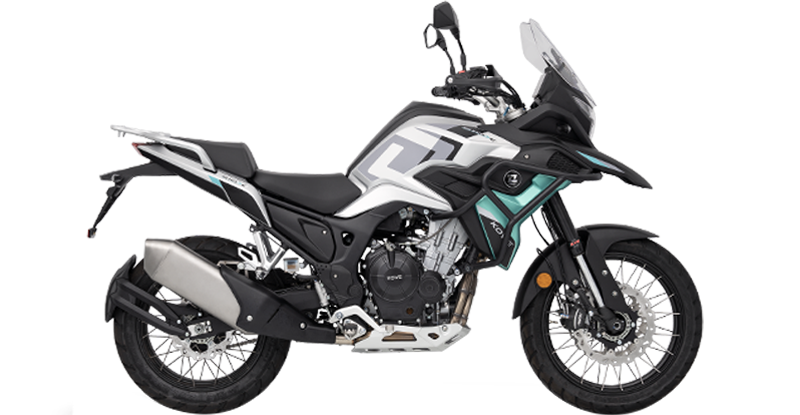

510X features super light weight, long shock travel, strong handling and high ground clearance. We have 2 versions. The luxury version is equipped with KYB damping, NISSIN disc brakes, Metzeler tires and spoked wheels.

It makes you have no fear of the extreme adventure

The 510X is a mid-range adventure motorcycle, and it can be ridden in the wild for long periods of time. The 510X is equipped with a water-cooled, dual-cylinder, eight valves, 498cc engine with plenty of power and linear output.
