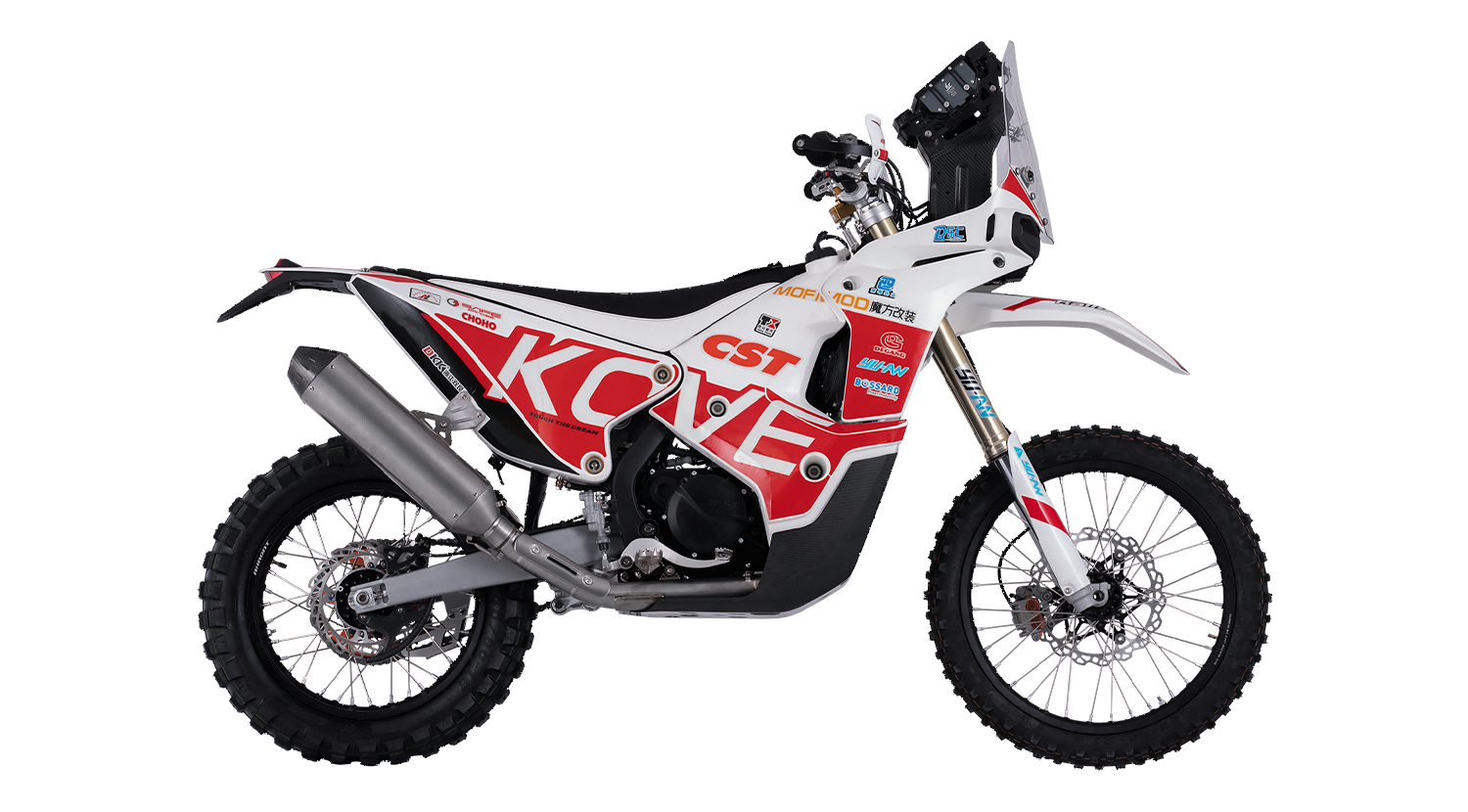

450RALLY FACTORY EDITION_RALLY_MODEL

Technical specs

Race Version

Dimension
Engine
Chassis

Length X Width X Height2170×810×1490mm
Wheelbase1490mm
Seat height960mm(Front)
Tank capacity30L
Curb weight145kg
Ground clearance310mm

Engine typeLiquid-cooled, oil-cooled, single cylinder, DOHC
Displacement449cc
Bore x stroke94.5×64mm
Compression ratio12.5:1
Max. power40KW/9500rpm
Max. torque42N·m/7000rpm
Fuel supplyEFI
Max. speed170km/h

Frame typeDiamond shape, dual-wing beam
Front suspensionYu An adjustable upside down fork
Rear suspensionYu An, external airbag
Front brake288mm, disc, 2-piston calliper/ABS
Rear brake240mm, disc, single piston calliper/ABS
Front tire CST, 90/90 -21
Rear tireCST, 140/80-18
Steering angle38.5°
Rake 28°
InstrumentionCompetition-specific instrument

Performance characteristics

Touch the dream

More than 1000 hours of intensive trials to work out the rigidity of the frame, you can drive steadily at high speed. This motorcycle also has an ergonomic seated riding triangle that makes standing up more comfortable by narrowing the engine side cover. All in all, It’s perfect choice for young racers looking to improve their on-bike skills.

Touch the dream

450RALLY Factory Version launched officially on September 2022 and it’s the professional Racing RALLY model. Our rally riders competed with this bike in the 2023 Dakar Rally. Our design concept is the light weight so that we use extensive magnesium alloy, carbon fibre, aircraft-grade aluminium and other new high-strength, lightweight materials on this motorcycle.
